15 Gallon Explosion-Proof Drum Heater C1D2 (120V)

Explosion-proof 15 Gallon Drum Heater - Certified by ETL to UL, CE, CSA Safety Standards for Class 1 Division 2 areas. Safely heat hazardous materials.

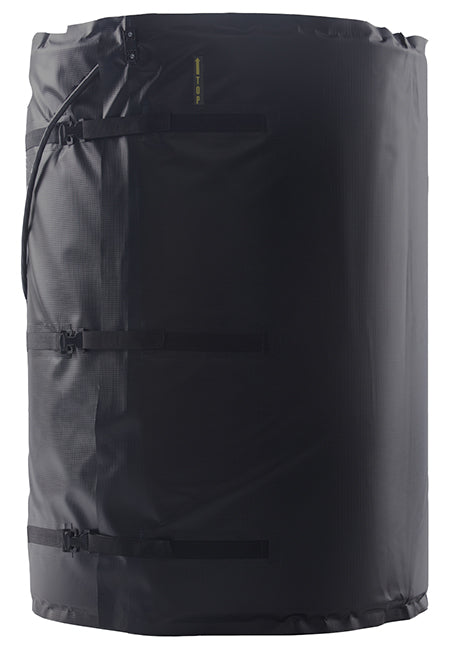

CBBH15-C1D2T4 - Custom 15 Gallon Drum Heater Certified for a Class 1 Division 2 Hazardous location. Our hazardous location products are listed for use in Class 1 Division 2; Groups A, B, C & D Hazardous Environments with a maximum Temperature Classification of T4. Our proposed heated solution is intended for a 15 gallon drum w/ container dimensions of 14.5"D x 26.3"H

Power Density: Extreme Freeze Protection -40°F

External Cord Length: 33 ft (can be shorten upon request)

Temperature Control: Internal preset thermostat

Vinyl Type: CA16 Gray Alloy Vinyl (cold-crack rated to -20°F)

Approximate Wattage: 400 Watts

Approximate Amperage: 3.33 Amps

Voltage: 120V

Certified by ETL to UL, CE, CSA Safety Standards

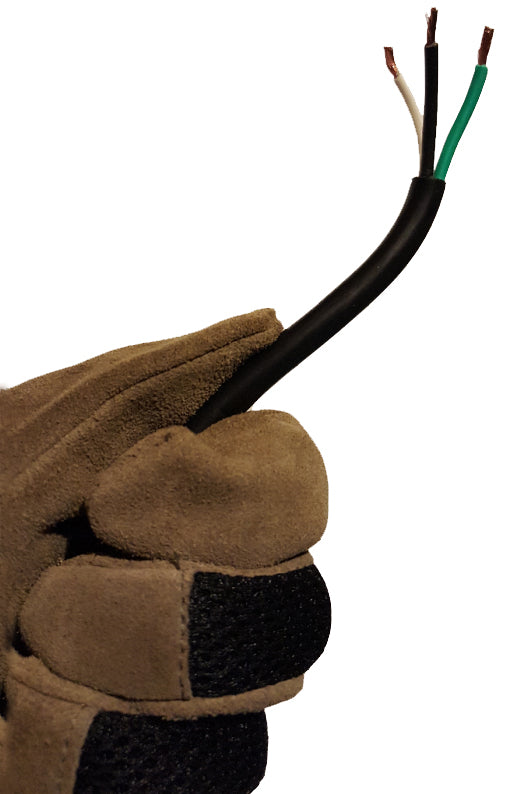

Power Cord: All C1D2 certified Powerblanket heaters will come with open leads

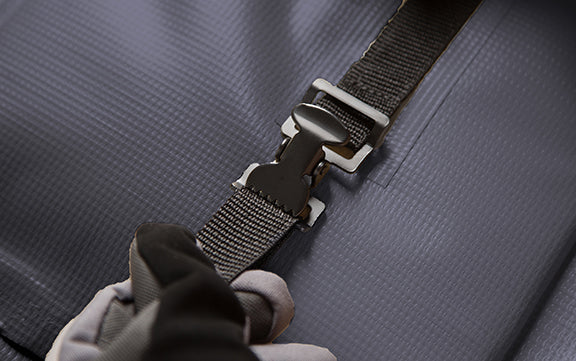

This item includes: Buckles & straps used for fastening the custom heated drum blanket... providing optimal thermal contact and increased performance.

Temperature Classification:

This classification chart below identifies the minimum ignition temperature threshold for the hazardous area. In other words, in order for the explosive or combustible environment to ignite, it would need to be subjected to a temperature in excess of this value. The values applied to this classification run from T1 to T6. A classification of T4 means the minimum ignition temperature is greater than 135° C [275° F].
