Drum Heaters

55 Gallon Explosion-Proof Drum Heater C1D2 (120V)

$2,550.00
About

Explosion-proof 55 Gallon Drum Heater - Certified by ETL to UL, CE, CSA Safety Standards for Class 1 Division 2 areas.  Safely heat hazardous materials.

Featured Specs
Dimensions 23.3"D x 34.9"H
Heat Range Mid
Watts 800W
Volts 120V
Availability In Stock
GTIN: 0709818889424 Warranty: 1 Year
View full details

Explosion-proof 55 Gallon Drum Heater - Certified by ETL to UL, CE, CSA Safety Standards for Class 1 Division 2 areas. Safely heat hazardous materials.


CBBH55-C1D2T4 - Custom 55 Gallon Drum Heater Certified for a Class 1 Division 2 Hazardous location. Our hazardous location products are listed for use in Class 1 Division 2; Groups A, B, C & D Hazardous Environments with a maximum Temperature Classification of T4. Our proposed heated solution is intended for a 55 gallon drum w/ container dimensions of 23.3"D x 34.9"H

Power Density: Extreme Freeze Protection -40°F

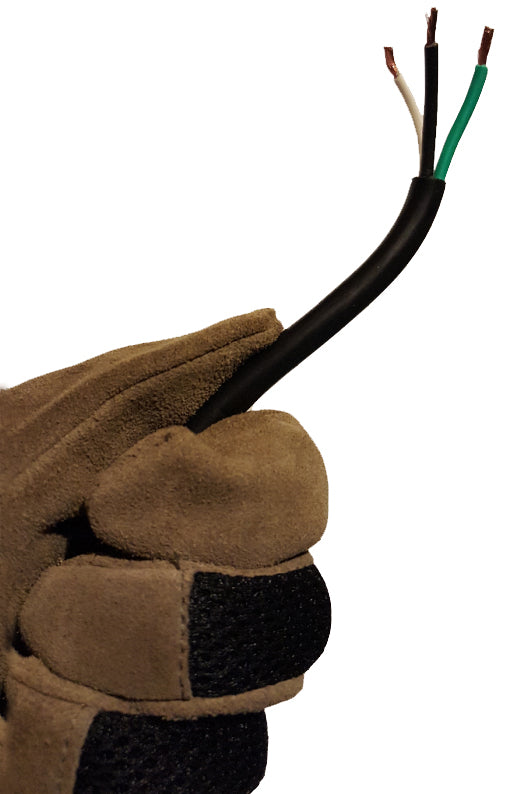

External Cord Length: 33 ft (can be shortened upon request)

Temperature Control: ALL heaters have a fixed internal thermostat and we can set that temperature anywhere between 60° F and 145° F (15°C - 63°C). If higher temperatures are required, please contact us for a custom quote.

Vinyl Type: CA16 Gray Alloy Vinyl (cold-crack rated to -20°F)

Approximate Wattage: 800 Watts

Approximate Amperage: 6.67 Amps

Voltage: 120V

Certified by ETL to UL, CE, CSA Safety Standards

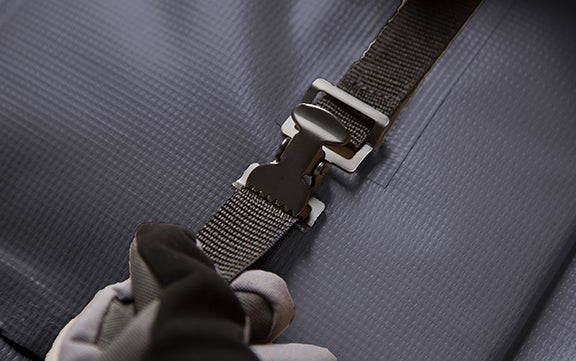

This item includes: Buckles & straps used for fastening the custom heated drum blanket... providing optimal thermal contact and increased performance.



Temperature Classification:

This classification chart below identifies the minimum ignition temperature threshold for the hazardous area. In other words, in order for the explosive or combustible environment to ignite, it would need to be subjected to a temperature in excess of this value. The values applied to this classification run from T1 to T6. A classification of T4 means the minimum ignition temperature is greater than 135° C [275° F].


Temp Classification/
Rating
Min Ignition
Temperature °C (°F)

Max Surface Temp
°C (°F)

T1 >450 [842] 450 [842]
T2 >300 [572] 300 [572]
T3 >200 [392] 200 [392]
T4 >135 [275] 135 [275]
T5 >100 [212] 100 [212]
T6 >85 [185] 85 [185]

When you need to heat your materials safely and quickly, we have the perfect solution for you.
