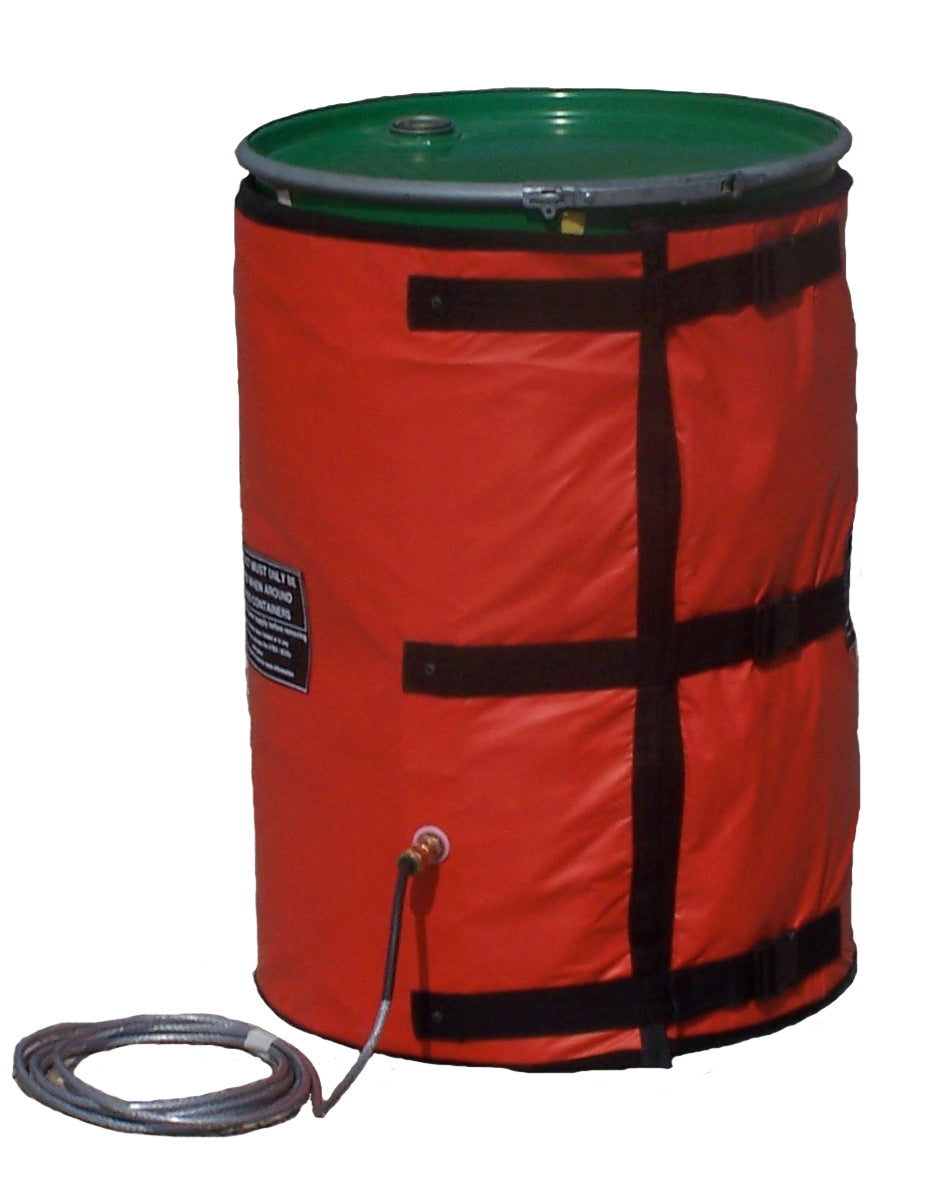

ThermoSAFE Hazardous Area Drum Heaters are CE, ATEX, IECEx and UL Certified for Class 1, Zone 1 use in flammable and explosive areas. Explosion-Proof & Intrinsically Safe Drum Heater by InteliHeat model# IHFNA-C/D/Z1.
SHIPPING CHARGES WILL APPLY. CALL FOR DETAILS 1-866-805-HEAT
ThermoSAFE Hazardous Area Drum Heaters are CE, ATEX, IECEx and UL Certified for Class 1, Zone 1 use in flammable and explosive areas. Constructed with custom elastomer and silicone coated glass cloth materials and high density fiberglass insulation. The heating medium uses a patented technology of positive temperature coefficient membranes. Safe operating conditions are maintained even in the presence of potentially explosive gases.
Includes a Barksdale Controller
240V Operation: Maximum temperatures up to 176° F (80° C) can be achieved when supplied with 240V. No transformers are required.
120V Operation: If using for freeze protection applications, a maximum temperature of 104° F (40° C) can be achieved when supplied with 120V.
* POWER CORD SUPPLIED OPEN ENDED TO FACILITATE PLANT WIRING.
Overall dimension: 76.5" L x 33.5" H (1950 mm x 850 mm).
** Warning: InteliHeat 55HAZ cannot be completely covered, as this would alter its temperature certifications.
UL/CSA Class 1, Div 1, Zone 1
ATEX (Atmospheres Explosibles) European Directive on equipment and protective systems intended for use in explosive atmospheres and pertains to manufacturers selling in the European Union (EU). Mandatory
IECEx Internation Electromechanical Commission system for certification to standards relating to equipment for use in Explosive atmospheres, recognized in the USA. Voluntary
