Bucket Heaters

Hazardous Area Induction Faratherm Base Heater for Drums and Buckets - Class 1 and Zone 1 Explosion Proof. 240V

$4,790.00
About

Class 1 and Zone 1 & 2 Certified for Intrinsically Safe & Explosion Proof areas. Drum Base Heater for 55 Gallon and smaller drums and barrels.

SHIPPING CHARGES WILL APPLY. CALL FOR DETAILS 1-866-805-HEAT

Featured Specs
Dimensions 21" Dia. x 2.5" H
Heat Range Mid - High
Watts 500
Volts Up to 240V
Availability Sold out.
GTIN: Warranty: 1 Year
View full details

Class 1 and Zone 1 & 2 Certified for Intrinsically Safe & Explosion Proof areas. Drum Base Heater for 55 Gallon and smaller drums and barrels.

SHIPPING CHARGES WILL APPLY. CALL FOR DETAILS 1-866-805-HEAT

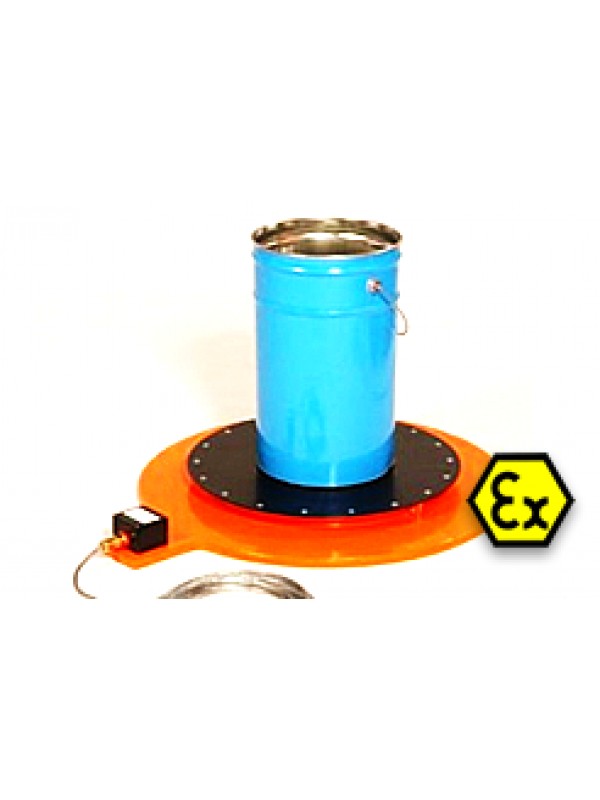

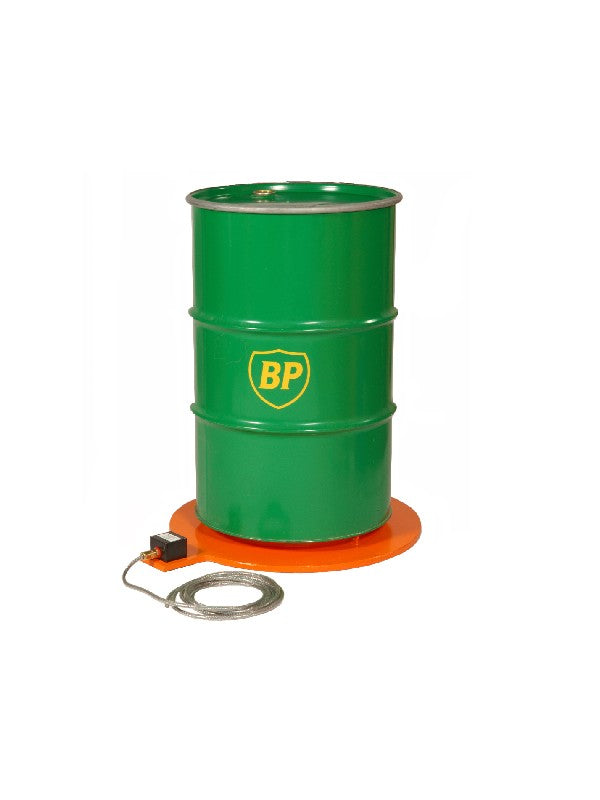

Provides heat to the base of steel or plastic 55 Gallon (210 liter) drums and smaller containers.

May be used individually, or with other Thermosafe products.

Uses the same technology as the proven Thermosafe Induction Heater.

Class 1 and Zone 1 & 2 Certified for Intrinsically Safe & Explosion Proof areas.

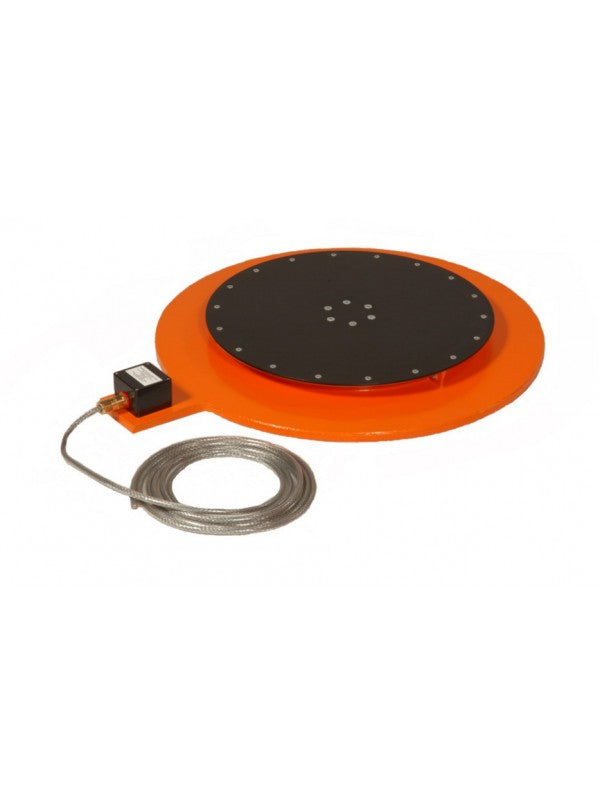

The Faratherm Induction Base Heater consists of an induction coil, encapsulated in glass reinforced resin with a heating plate located on top. It has been developed using the same technology as the Thermosafe Induction Heater - a very reliable and efficient product in use worldwide for over 20 years. Powered by a single phase ac mains supply, it will heat the base of drums and containers placed onto it.

Faratherm is safe to use in hazardous areas (zones 1 and 2). It is fully certified to meet both ATEX and IECEx requirements. With an ingress protection rating of IP66 and no moving parts, it is suitable for use in harsh environments or where regular cleaning is required. The plate is heated by induction and therefore there are no heating elements. The maximum temperature is self limiting - this is governed by the material being heated and the heating arrangement. In most applications additional temperature regulation is not required, however control options are available, please ask for more information.

120V Operation: Produces a max. temperature output of 127° F (53° C)

240V Operation: Produces a max. temperature output of 253° F (123° C) - Power consumption is 7A/500W at 240V

** Power cord supplied open ended to facilitate plant wiring.

Click on button for additional FARATHERM certification information.

When you need to heat your materials safely and quickly, we have the perfect solution for you.
