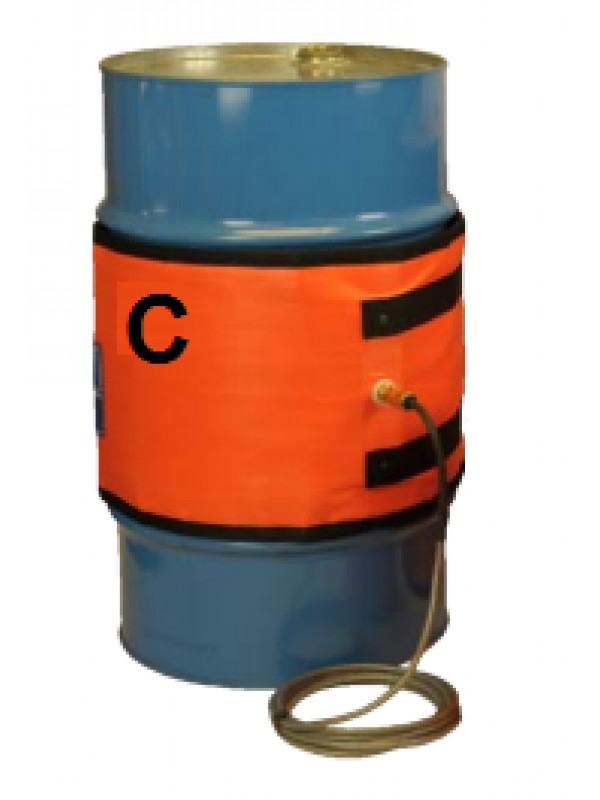

30 Gallon Hazardous Area Drum Heater Intrinsically Safe - C1D2Z1 (240V)

LMK Thermosafe is pleased to announce their hazardous area heating jackets for 25, 50 and 100 Litre containers (5, 16 and 30 Gallon).

SHIPPING CHARGES WILL APPLY. CALL FOR DETAILS 1-866-805-HEAT

InteliHeat Flexiplus 100L Heating Jacket

Also Available in Sizes: A, B, C (25L, 50L, 100L containers)

Safe heating of containers, even in hazardous areas

Ideal for warming and to avoid winter freezing

LMK Thermosafe is pleased to announce their hazardous area heating jackets for 25, 50 and 100 Litre containers (5, 16 and 30 Gallon). These ATEX Zone 1 and 2 rated heating jackets are ideal for warming or to avoid winter freezing (Class 1, Division 1 & 2 in the USA).

They are constructed with a silicone coated glass cloth outer and high density fibreglass insulation. Safe operating conditions are maintained even in the presence of potentially explosive gases. No transformers are required as they operate using a standard 240v ac supply.

The InteliHeat Flexiplus Heating Jackets are designed to fit around containers of size 25L, 50L and 100L. Other sizes of heating jacket for other containers are also available. A self limiting temperature of around 40°C above the ambient temperature will be maintained on the drum wall when operated at 240v (with a 20°C / 68°F ambient temperature, the drum wall temperature will be around 60°C /140°F). If lower temperatures are required, the heating jacket may be fitted with an optional thermostat (0-50°C), allowing the user to reduce the heating jacket temperature. The thermostat must be adjusted while the jacket is situated within a safe area.

Hazardous Area Certification.

Standards: EN 60079-0:2012, EN 60079-7:2007, EN60079-31:2009

EC-Type Certificate Number: CML13ATEX3018X II 2 G D Ex e IIC T4 Gb Ex tb IIIC T135°C Db (Zones 1 and 2)
